Saturday, December 15, 2007

My crutch is missing!

I left my laptop at a customer location on Thursday about 45 minutes away and have not gotten back to pick it up. Therefore, I am religated to making this entry from my iPod Touch. Now I M getting a cramp from typing on the Touch keyboard. Guess I had better run there and pick it up today.

Wednesday, October 17, 2007

Insult + Injury

I have this customer who had this terribly infected PC. She is hooked directly to the internet through a cable modem, with original (pre-SP1) Windows XP, no antivirus or any other protection (like having sex with a homeless derelict in New Orleans without a condom) and it had every conceivable infection and was nearly impossible to clean out, especially since I had trouble booting into Safe Mode.

Finally, after almost 4 hours, I gave up and brought the thing home and work on it over a weekend. On Saturday, I couldn't boot into any mode. So I pulled the drive and hooked it into my own PC and tried to run Spinrite. Oops, Spinrite says the S.M.A.R.T. system on the drive says it is on its way out. I backed up what I could and checked the BIOS on the customer's machine, and sure enough...the S.M.A.R.T. monitoring in BIOS is off (my PC does not seem to have this capability).

So I called her and told her the bad news. I was able to get a new 160G drive (her old one was 120G with only about 20G on it) at Best Buy for $76 and now it is ready to give back to her, although all her programs will have to be reinstalled. She will have a software firewall now and AVG Free but can probably really use a router, since the bad guys have her IP address.

Tuesday, October 09, 2007

Computer in a Desk

Nope, not just in a cubby in the desk or even in a drawer of the desk, I mean built into the desk. I was tired of having my computer chassis open in front of the desk all the time so I could be adding or removing HDDs or putting a customer's drive in so I could recover their data. I wanted the drives exposed in an easy-to-get-to fashion and still have the thing out of my way.

The desk I have has a 6-inch wide bay to the right of the monitor designed to hold CDs in jewel cases. I thought that it would be just the right size to house several drive bays as well as the CD-RW and DVD-RW drives I had in the machine. I thought that I could mount the system board and power supply against the lower side of the desk near my feet and be able to reach all of the bays with power and data cables.

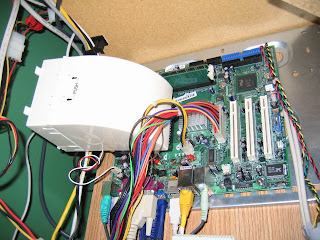

I also wanted to do this as inexpensively as possible, so I dug into the drawers and piles of old computer stuff my son's left around the house after they moved out. I dug out some of the longest EIDE cables I could find, and even one which was not EIDE, but possibly SCSI. It was 50 conductors wide instead of 40, but I was able to cut it down and put on the connectors from another EIDE cable to make what I needed. I also ripped the backboard out of an old mintower to attach the system board to, and attached it to the desk. With some scavenged standoffs and screws, I was able to mount the HP system board.

I emptied out the bay in the desk and drilled some holes in the back, so I could mount two chassis cooling fans to keep my drives ventilated. These would be powered right off the main supply and run whenever the system was on. I saved the "grill" work from the front of the bays to close it up when in use. They were easy to remove when I wanted to make changes to the drives.

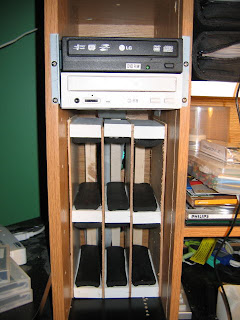

I built a 6-drive structure to sit in this bay, with padding to help keep noise down and to hold the drives in place. I also modified a number of EIDE cables to put the master and slave connectors closer together, and also to make the cables turn corners and fit through smaller holes. I needed 3 sets for the hard drive bays and one really long set to go from the CD drives to the system board. I also cut up a 5 1/4 inch, 4 position bay from an old tower to put the CD drive into. This was just the right size to fit into the 6 inch wide opening of the desk bay and I positioned it to sit right above the 6 HDD drive bays.

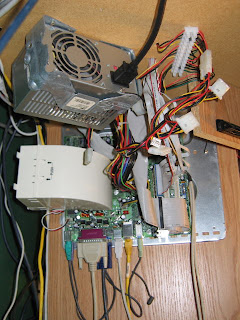

I drilled holes in the desk surface and fished all of the power and signal cables from the bay down to the system board and got everything hooked up. The drives get power from Molex connectors I cut from old power supplies and are attached to a barrier strip attached to the bottom of the desk. The strip is then connected to the power supply, which is also mounted with a modified bracket to the bottom of the desk.

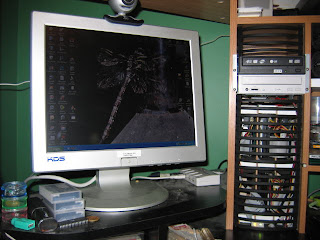

With the drives installed, a scavenged set of wires to provide on/off and HDD and power LEDs to the desktop, it is pretty much done and working. I still need to get USB ports to the desktop but that can wait.

Hard disk pioneers win physics Nobel



"France's Albert Fert and Germany's Peter Gruenberg won the 2007 Nobel Prize for physics on Tuesday for a breakthrough in nanotechnology that lets huge amounts of data be squeezed into ever-smaller spaces."

Wow, and I thought the technology of HDD was mind blowing in 1977 when I first encountered it. So this is how they got such amazing aerial densities.
